ASME B16.34 Crown-Fusion Threaded Ball Valves

Jump to Section
    Add a header to begin generating the table of contents
    Scroll to Top

    Features & Benefits

    Double Sealed Body Connections

    • All multi-component body designs feature double sealed body connections. Potential leak paths are eliminated and Firesafe compliant to API 607.

    Double Seated Stem Design

    • All valves feature double sealed stem design. Potential leak paths are eliminated and Firesafe compliant to API 607.

    Industry standards requirements

    • Blowout Proof Stem Design
    • Standard Anti-Static Device
    • Standard Locking Device

    Industry standard actuation modification capability

    • ISO 5211 Actuator Mounting Pad

    Conformance to Industry Standards

    • Manufactured in accordance of API Q1 quality system
    • ISO 9001: 2015 quality system
    • API 608, API 598, API 607
    • ASME B16.34
    • NACE MR0175
    • CRN Registration (Canada) – All provinces

    Literature

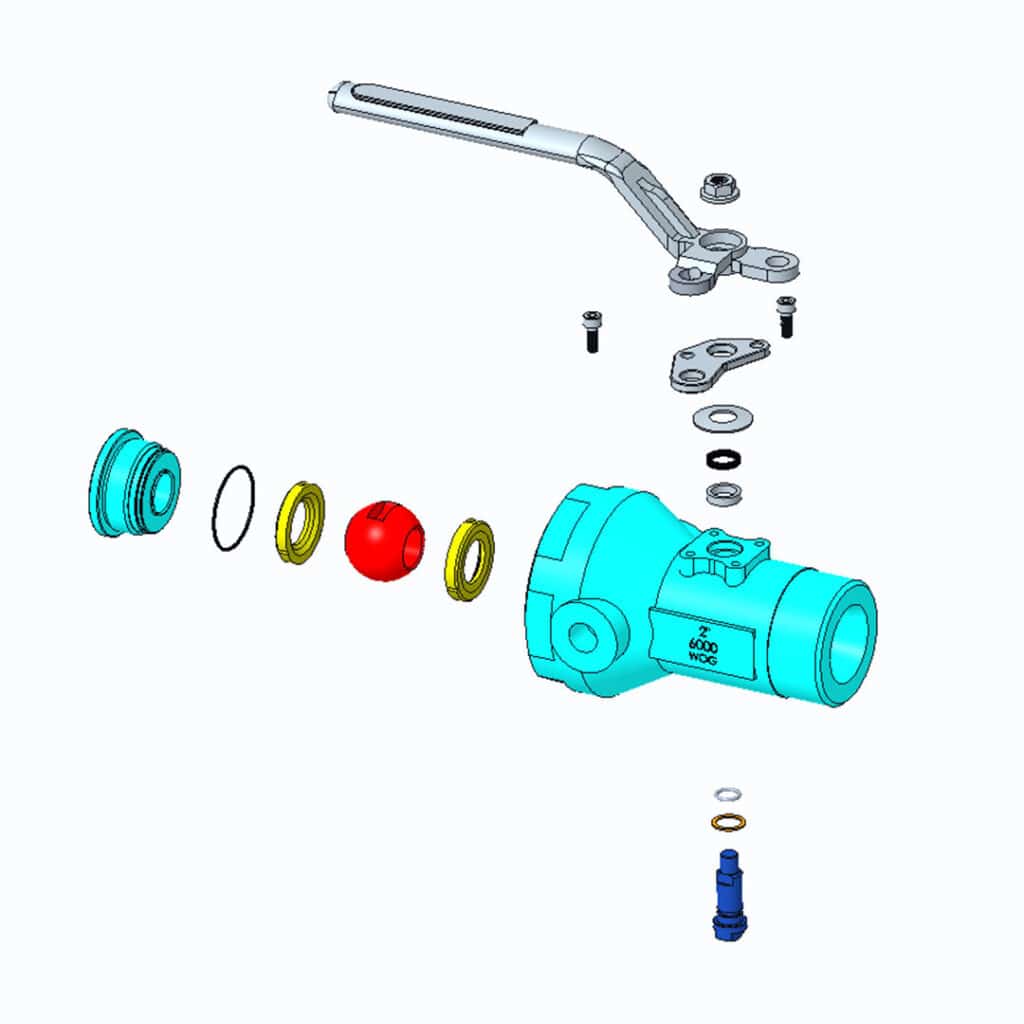

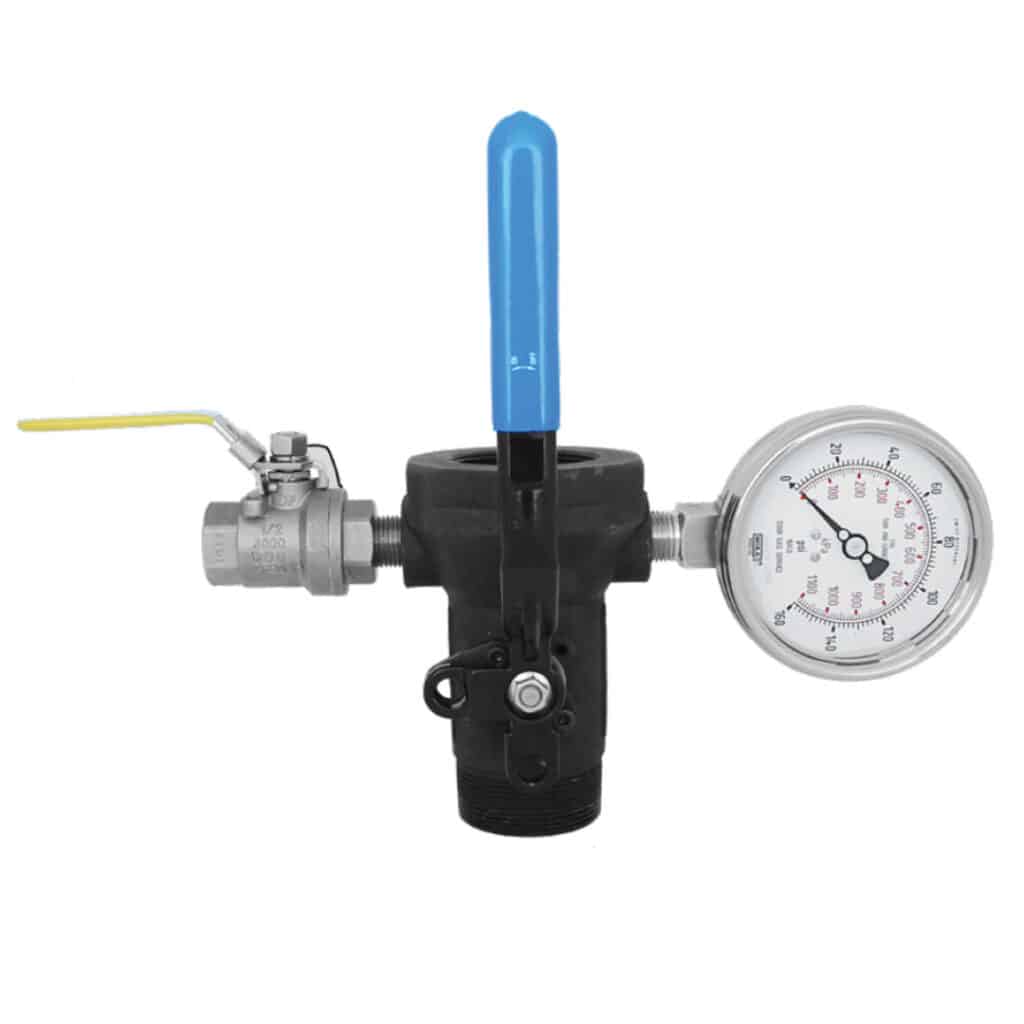

    • One-Piece Body
    • Venturi Port – 6000 WOG
    • 2” x 3/4” x 2”, FNPT x MNPT Ends
    • c/w 2-1/2” NPT Port Hole

    Features standard reinforced TFM seats. TFM provides the best combination of durability, ease of operation, and temperature range and process compatibility for these valve designs.

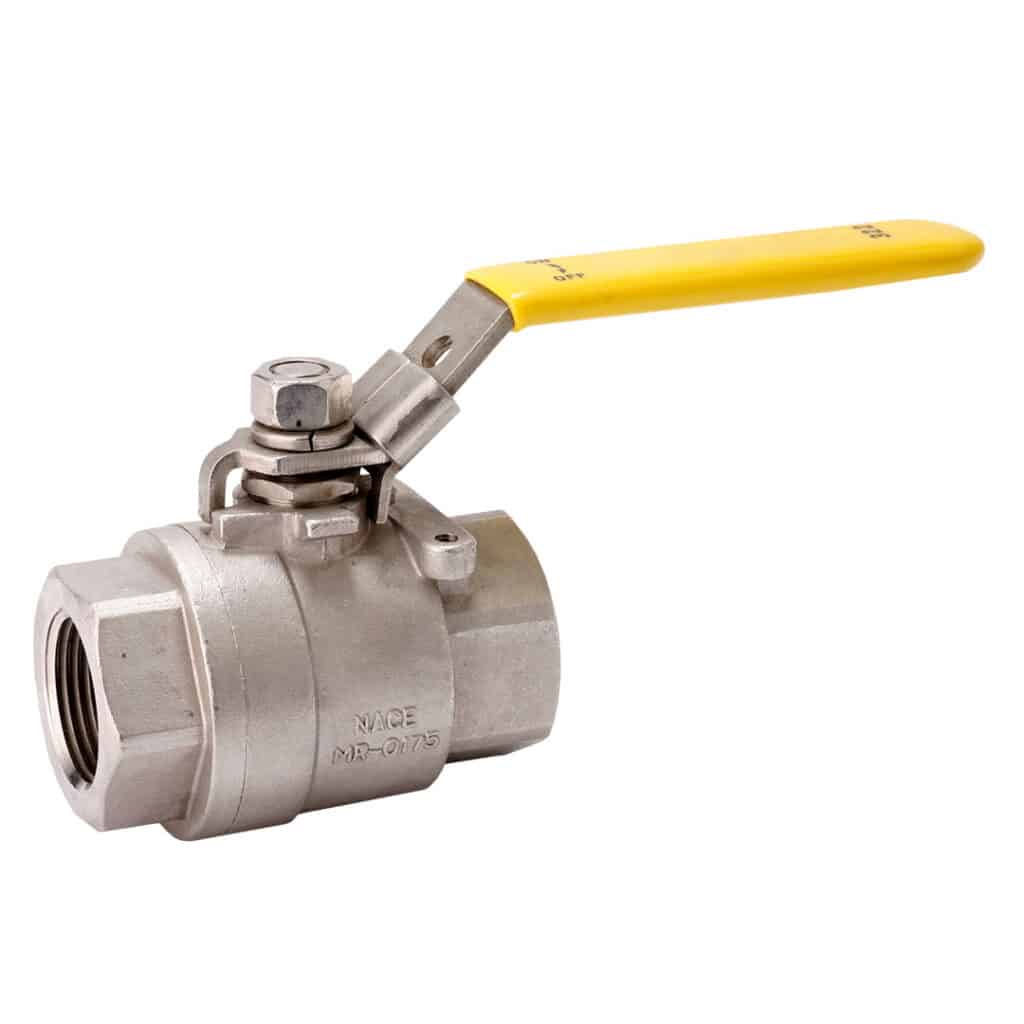

    • Two-Piece Threaded Body
    • Full Port
    • 1/4” – 2” 2000/3000 WOG
    • 2-1/2” – 3” 1500/2000 WOG
    • Seal Welded Tail Piece Optional

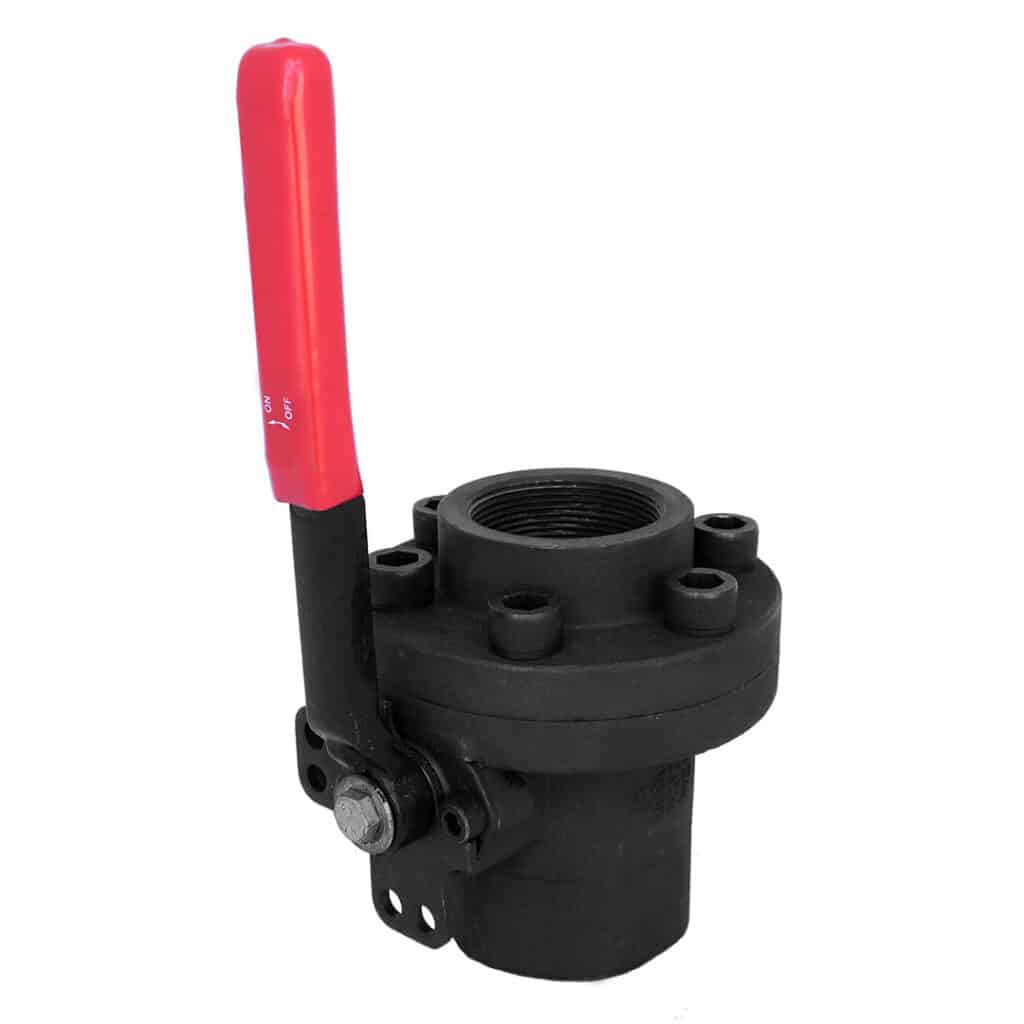

    • One-Piece Body
    • Venturi Port – 6000 WOG
    • 2” x 3/4” x 2”, FNPT x MNPT Ends
    • c/w 2-1/2” NPT Port Hole

    Features standard reinforced TFM seats. TFM provides the best combination of durability, ease of operation, and temperature range and process compatibility for these valve designs.

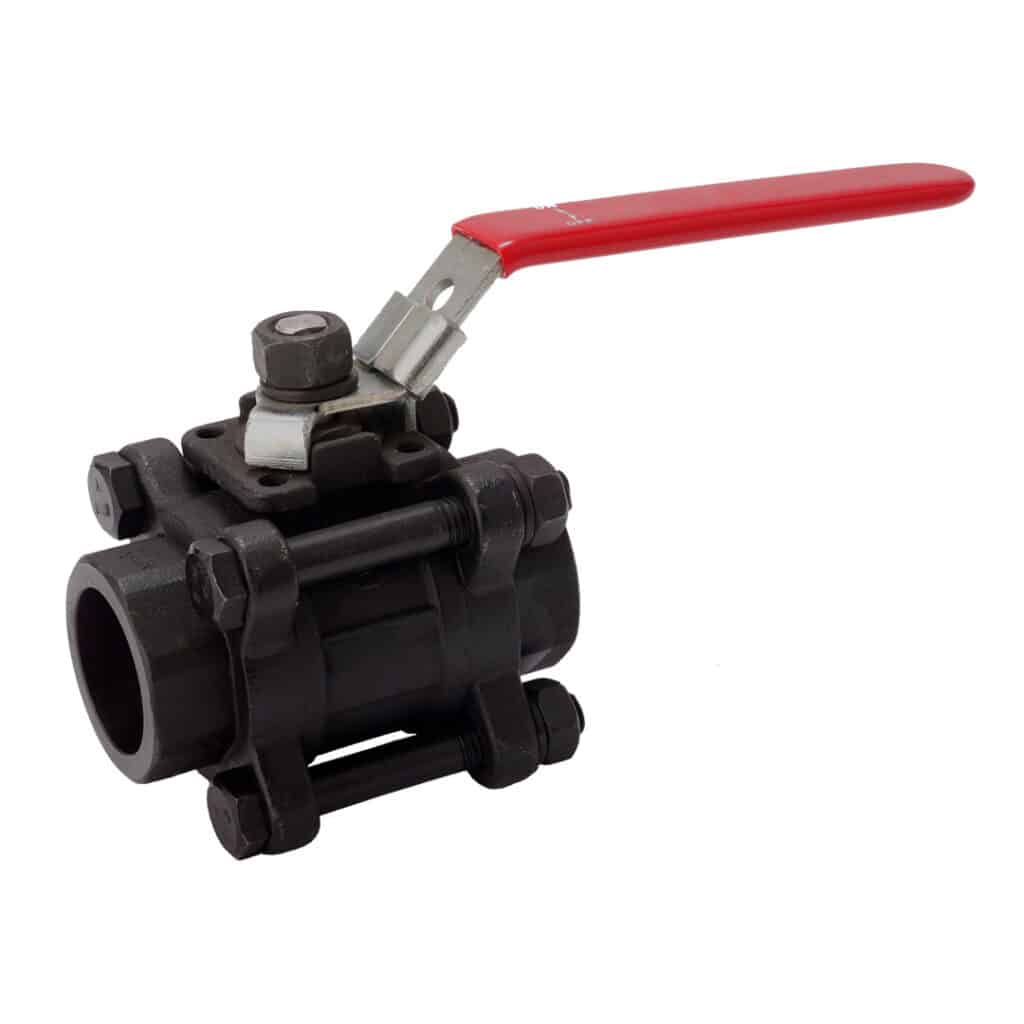

    • Three-Piece, Four-Bolt Body
    • Full Port
    • 1/4” – 2” 2000 WOG
    • 2-1/2” – 3” 1500 WOG

    Features standard cooling “fins” on socketweld end valves, permitting welding to valves into line without disassembly. Also features PEEK seats.

    • Three-Piece Bolted Body (Fully Encapsulated Bolting)
    • Threaded, Socketweld – 3750 WOG
    • Full Port 1/4” – 2”, Regular Port 1”, 2” and 3” Only
    • Three Piece Design
      • Threaded, Socketweld, Socketweld/Threaded
    • 3000, 6000 WOG
    • Full Port 1/4” – 2”, Reg Port 3/4” – 3”
    • API 641 Low Emission Certified

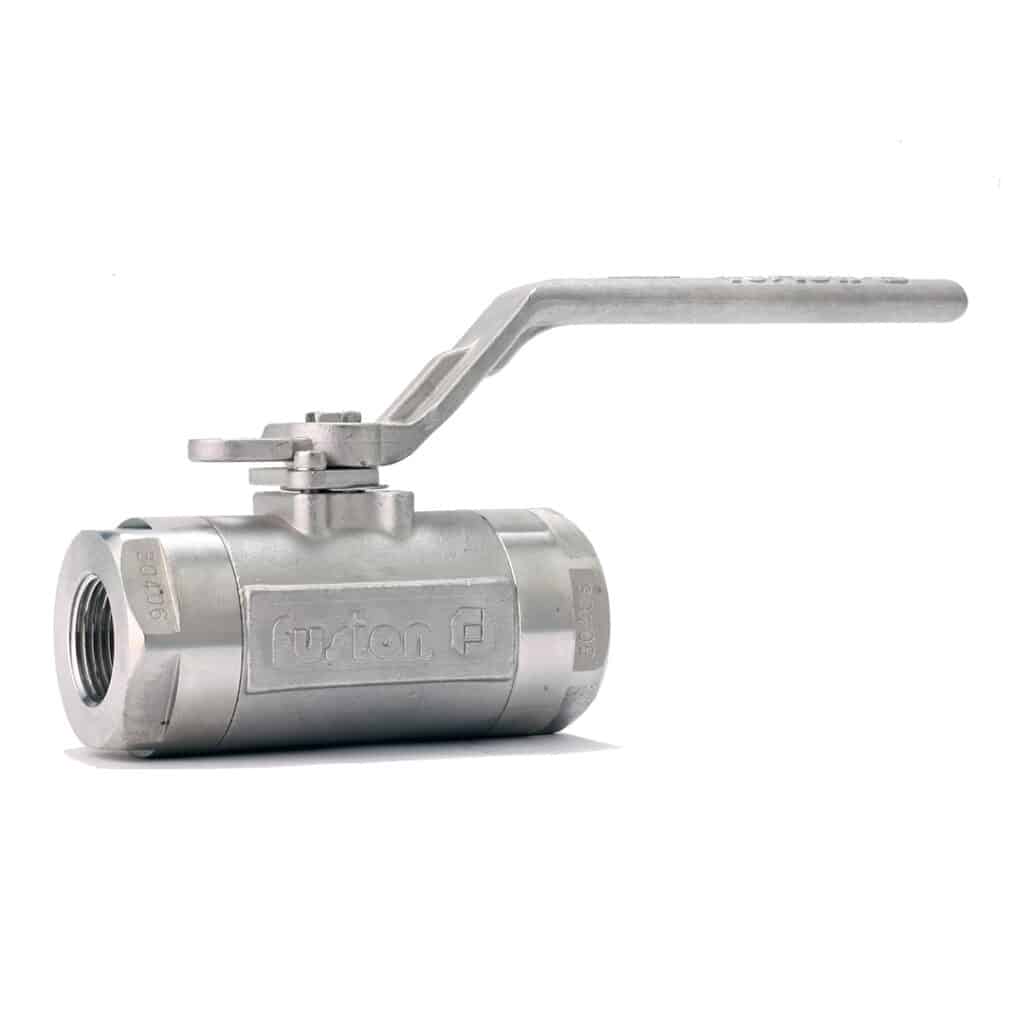

    • Uni-Body Barstock
    • Threaded – 2000 WOG
    • Regular Port 1/4” -2”
